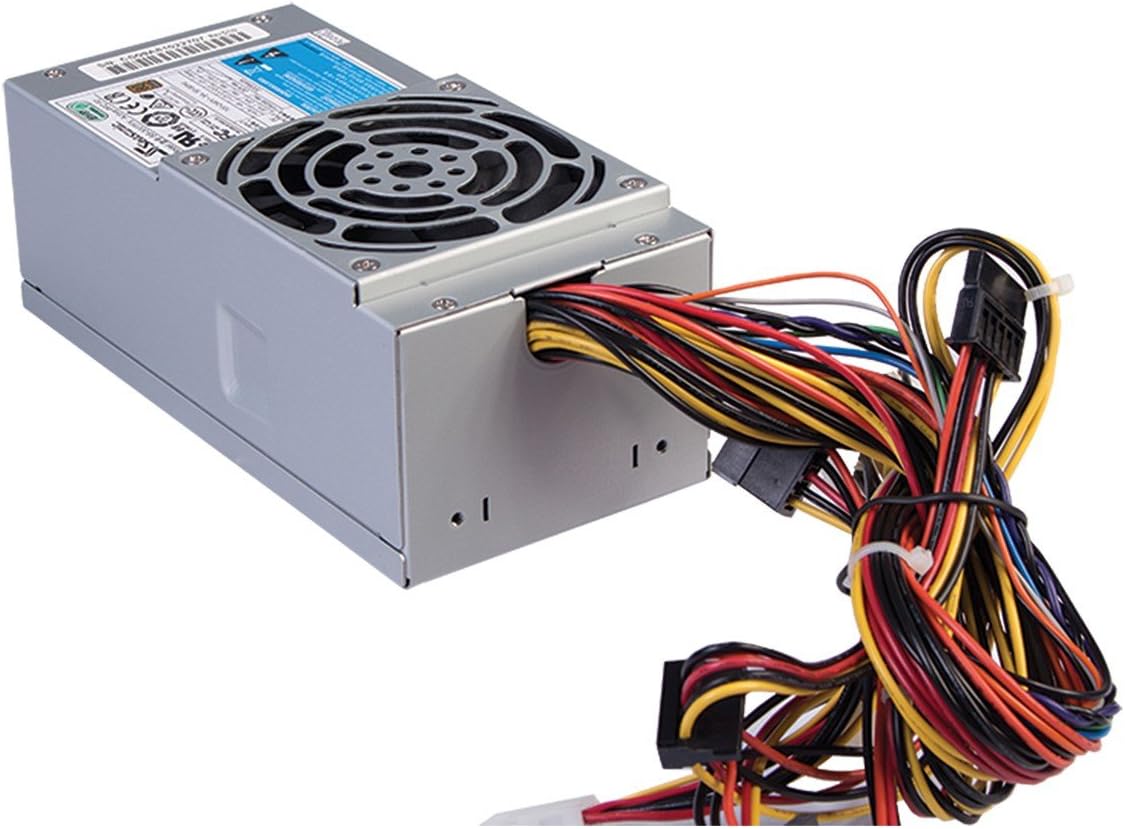

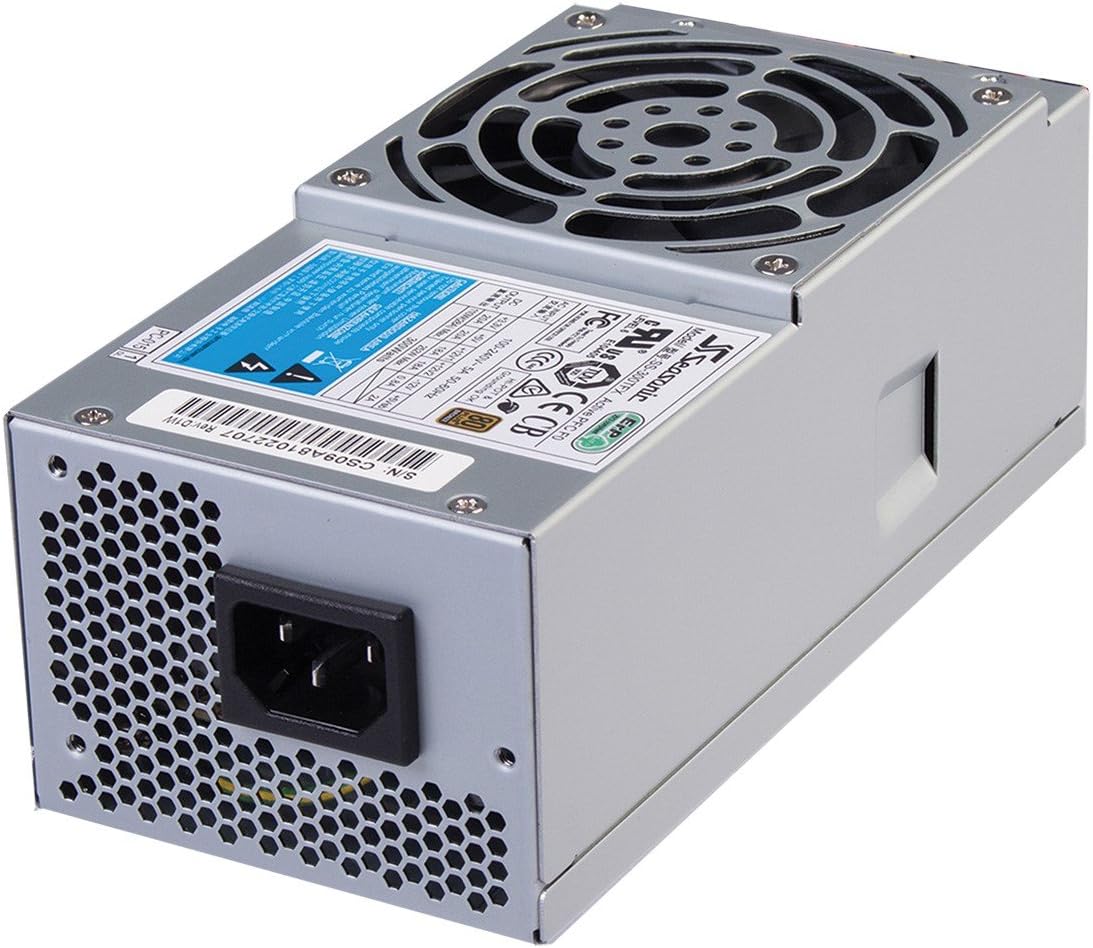

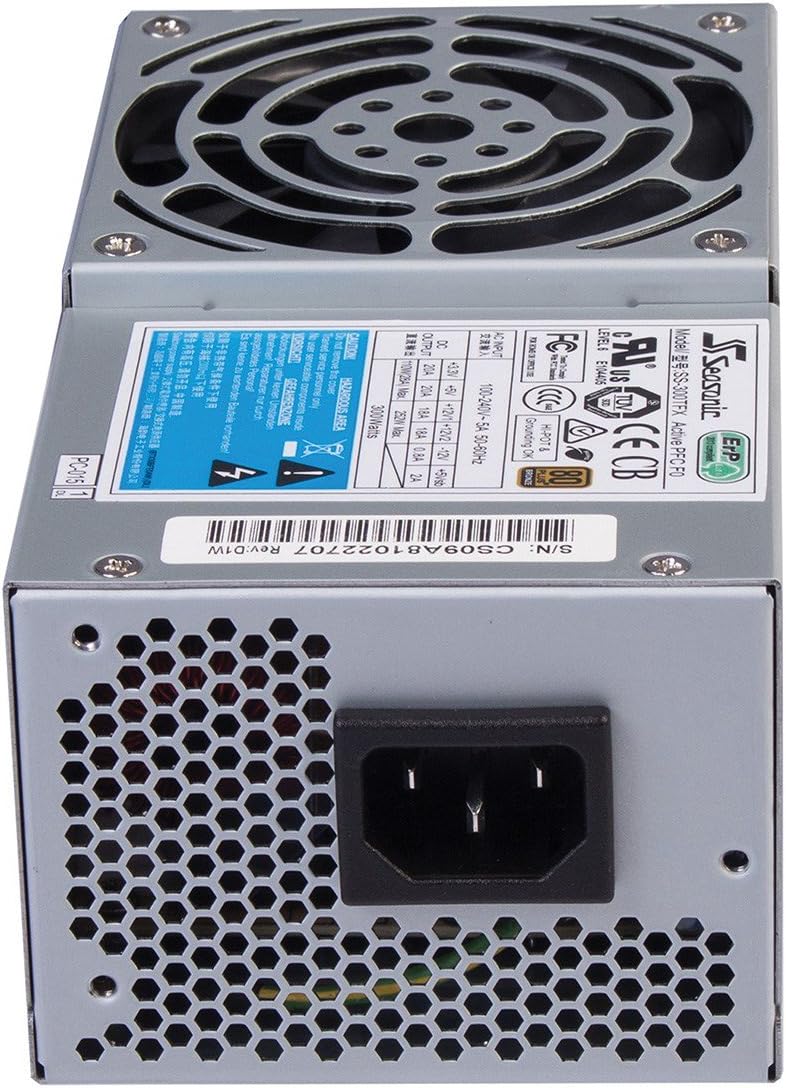

300W TFX12V Power Supply J946411

'

Specifications

• Mfr Part Number: SS-300TFX
• Features:
  • Specification compliance: TFX 12V v2.31
  • Pentium 4 ready with P4 connectors

  • Forward converter circuit
  • High efficiency and reliability
  • Low ripple & noise
  • Super low noise fan control
  • Short circuit protection on all outputs
  • Over voltage protection
  • Over power protection
  • 100% hi-pot test
  • 100% burn in; high temperature cycled on/off
• Total Power: 300 W
• Input Voltage: 100~240 V
• Input Frequency Range: 47 ~ 63 Hz
• Input Current: 5A max.
• Inrush Current: 100A max; cold start
• Hold-up Time: 12 ms
• Power Factor Correction: Active PFC; 99% typical

• Safety: CUL; TUV; CB
• EMI/RFI: CE; FCC; C-tick
• Output: +3.3V @ 20A; +5V @ 20A; +12V @ 21A; -12V @ 0.8A; +5Vsb @ 2A
• Connector: 1x 20/24pin Main; 1x 4pin 12V CPU; SATA ; HDD; FDD

• Cooling System: 1x 8cm Double Ball Bearing Fan
• Dimension (WxLxH): 3.3 x 6.9 x 2.8 inch / 85 x 175 x 70 mm
• RoHS Compliant
• OEM Seasonic Power Supply doesn't come with Power Cord. Need to bundle with item # POWERCORDS (6 ft Power cord)
