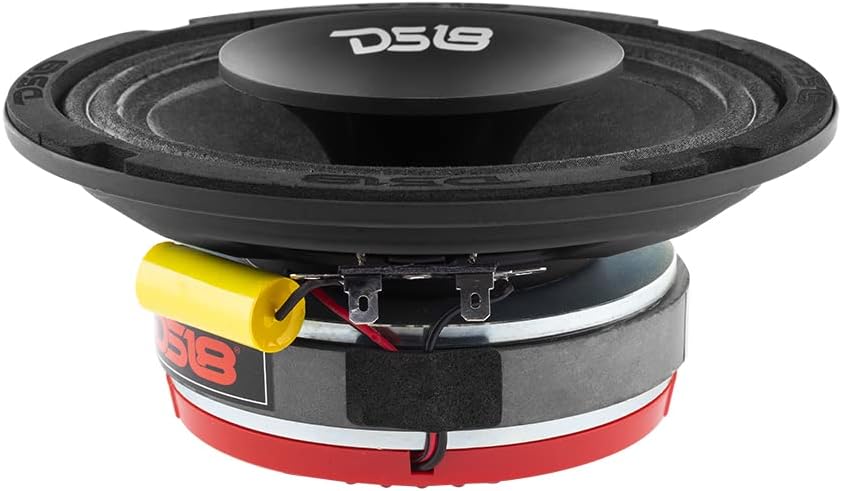

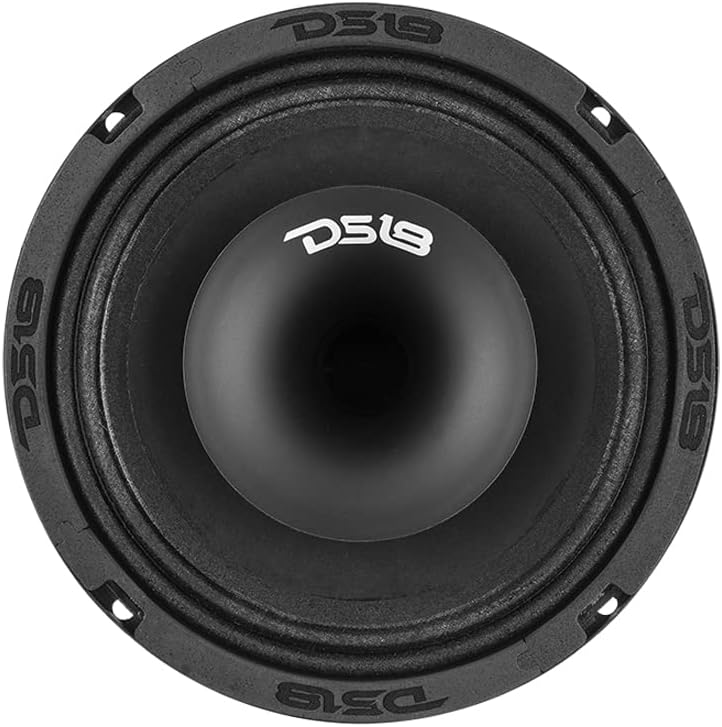

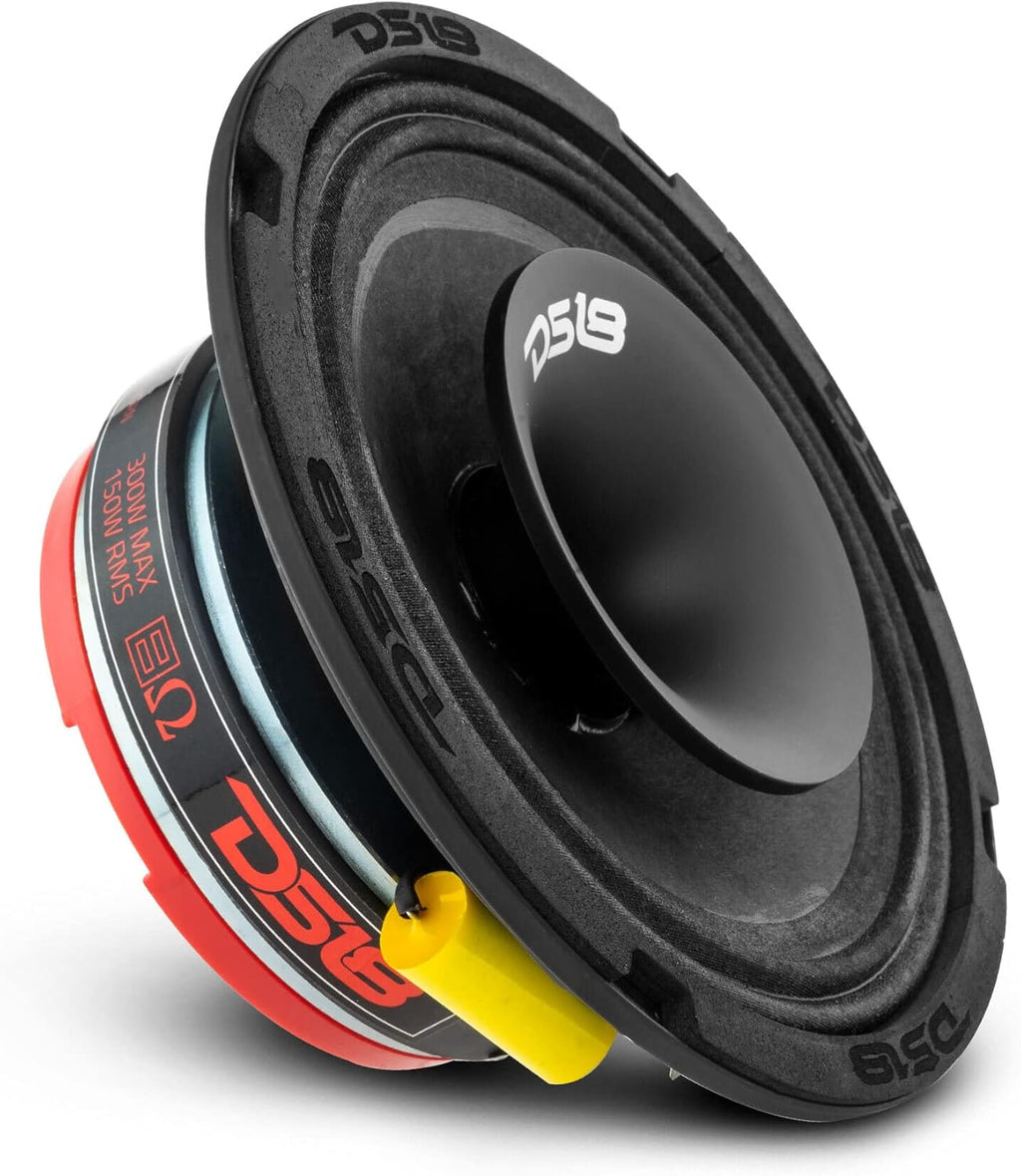

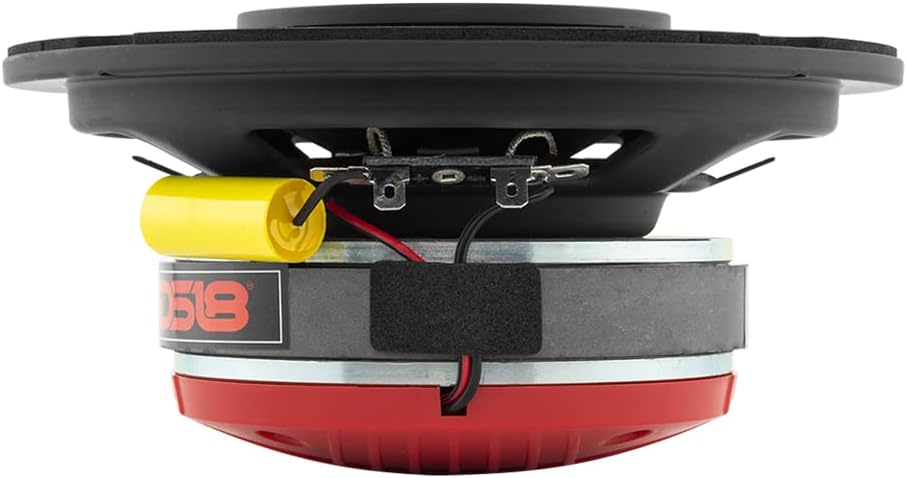

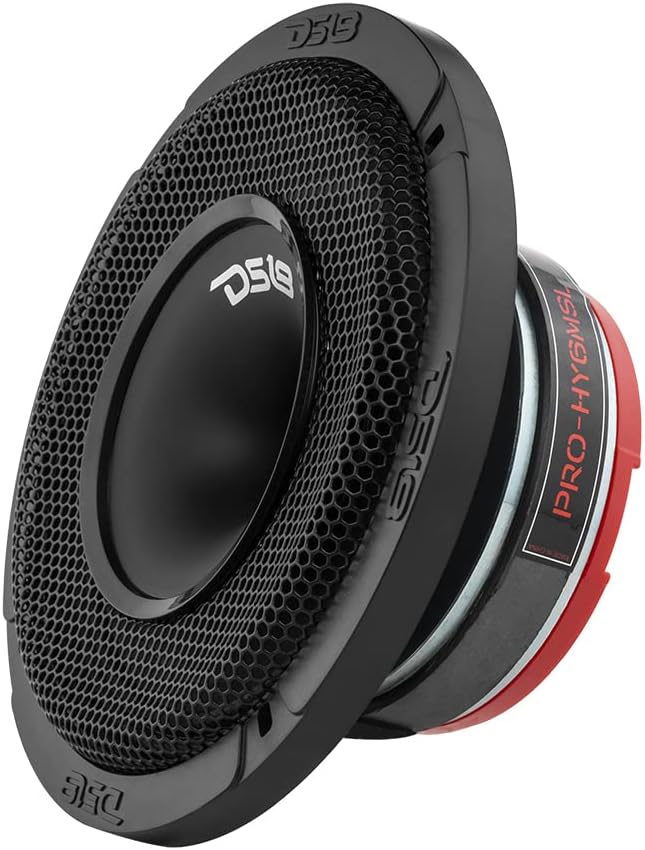

6.5 Shallow Hybrid Mid-Range Car Audio Loudspeaker with Built-in Driver and Grill 300W Max 8 Ohms 1 Speaker Z145
6.5 Shallow Hybrid Mid-Range Car Audio Loudspeaker with Built-in Driver and Grill 300W Max 8 Ohms 1 Speaker Z145
These compact Pro Audio Speakers combine the best of both worlds! We have emphasized and carefully combined both our Pro-Audio midrange and a high intensity driver all in a slim package
This high-quality, durable, and innovative design perfectly blends a high-volume Speaker with a high wattage driver.
These Speakers are the ultimate choice for extreme loudness with amazing clarity at high volumes.
If you are looking for a high-powered Audio Speaker for your car or any other application, this completely customized Speaker will give you the output you need to get the job done.
Made of titanium, neodymium, ferrite, and featuring a glossy red basket color, this revolutionary Hybrid Loudspeaker is going to last you years!
DS18 PRO-HY6MSL 6.5' Mid-Range Shadow Slim Loudspeaker with Built-in Driver 300 Watts 8-Ohms
Your search for the best high-powered audio speakers comes to an end with the DS18 Hybrid Speakers!
These compact Speakers combine the best of both worlds! We have emphasized and carefully combined both our Pro-Audio midrange and a high intensity driver all in a slim package for an endless amount of applications that need Pro-Audio sound in tight spaces where traditional drivers wouldn't fit.
SPECIFICATIONS
Nominal Diameter 6.5' / 165.1mm
Nominal Impedance 8 ohms
RMS Power Handling 150W
MAX Power Handling 300W
Sensitivity (1w/1m) 93dB
Frequency Response 120Hz-20Khz
Recommended HI Pass Crossover 140Hz
Number of ways 2 ways
Pair or Single Single
Grill Included Yes
WOOFER SPECIFICATIONS
Voice Coil Diameter 1.5' / 38.6mm
Voice Coil Former Material KSV
Winding Material CCAW
Cone Material Paper
Surround Material Cloth
Basket Material Steel
Basket Color/Finish Glossy Red
Magnet Material Ferrite
Magnet Weight17.5 Oz
DRIVER SPECIFICATIONS
Voice Coil Diameter 1' / 25.4mm
Voice Coil Former Material Kapton
Winding Material CCAW
Diaphragm Material Titanium
Magnet Material Neodymium
Horn Diameter 3' / 76.2mm
SPEAKER MEASUREMENT
Overall Diameter 6.92' / 176mm
Overall Depth 3.52' / 89.5mm
Front Mount Baffle Cutout 5.6' / 142mm
Mounting Depth 2.77' / 70.5mm
Motor Diameter 4.33' / 110mm
| PRO-HY6MSL | PRO-HY6.4MSL | PRO-HY8MSL | PRO-HY8.4MSL | PRO-HY6.4B | PRO-HY8.4B | |
|---|---|---|---|---|---|---|
| Nominal Diameter | 6.5' | 6.5' | 8' | 8' | 6.5' | 8' |
| Nominal Impedanc | 8 OHMS | 4 OHMS | 8 OHMS | 4 OHMS | 4 OHMS | 4 OHMS |
| RMS Power Handlin | 150 WATTS | 150 WATTS | 200 WATTS | 200 WATTS | 225 WATTS | 250 WATTS |
| MAX Power Handlin | 300 WATTS | 300 WATTS | 400 WATTS | 400 WATTS | 450 WATTS | 500 WATTS |
| Sensitivity | 93dB | 93dB | 94dB | 94dB | 96dB | 97dB |
| Frequency Response | 120Hz-20Khz | 120Hz-20Khz | 100Hz - 20Khz | 100Hz - 20Khz | 100Hz-20KHz | 80Hz-20KHz |
| Mount Depth | 2.77' | 2.77' | 3.11' | 3.11' | 3.92' | 4.29' |
| Built In Driver | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ |
| Water Resistance | ✓ | ✓ |
